Ingesting data from PostgreSQL to VeloDB (using Flink CDC)

Prerequisites​

VeloDB Cloud Account (Required)​

You need a VeloDB Cloud account with an active cluster. If you don't have one, follow the VeloDB Quick Start Guide to create your account and cluster.

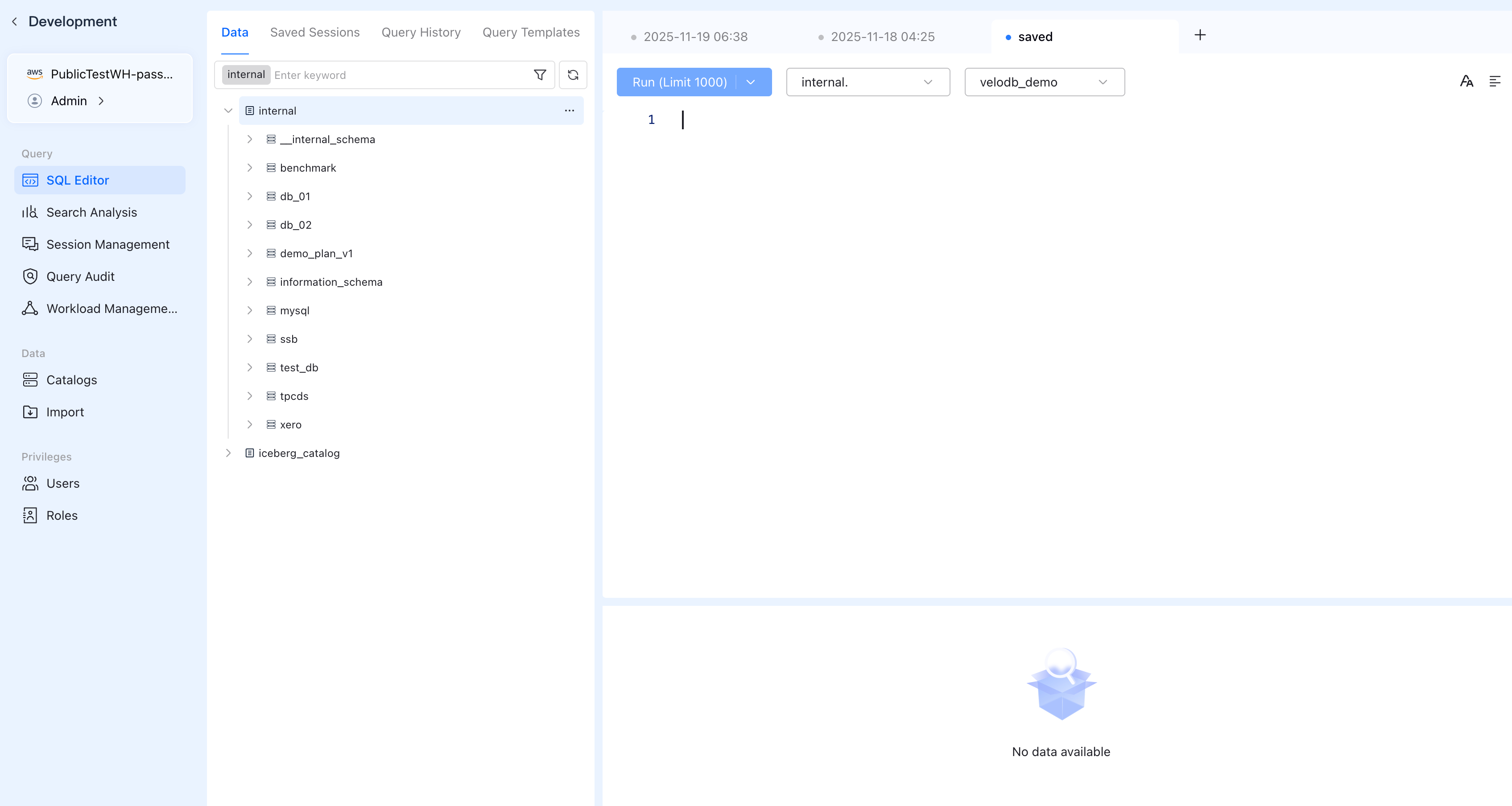

To run SQL queries and create databases in VeloDB, use the built-in SQL Editor in the VeloDB Console sidebar:

SQL Editor

PostgreSQL Source Configuration​

Ensure your PostgreSQL database is configured for CDC:

Source TypeSetup Guide
Self-hosted PostgreSQLLocal PostgreSQL Source Setup
Amazon Aurora RDS PostgreSQLAurora RDS PostgreSQL Source Setup
Amazon Aurora Serverless v2 PostgreSQLAurora Serverless PostgreSQL Source Setup

Required PostgreSQL configuration:

  • wal_level = logical
  • max_replication_slots >= 1
  • max_wal_senders >= 1
  • CDC user with REPLICATION, LOGIN privileges and SELECT on tables
  • For Aurora: CDC user with rds_replication, rds_superuser, pg_read_all_data roles

1. (Optional) Create Sample Table​

Run the following SQL in your PostgreSQL database:

CREATE DATABASE test_db;

\c test_db

CREATE TABLE student (
    id INT PRIMARY KEY,
    name VARCHAR(100) NOT NULL,
    age INT,
    email VARCHAR(255),
    phone VARCHAR(20),
    score NUMERIC(5,2),
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

INSERT INTO student (id, name, age, email, phone, score) VALUES
(1, 'Alice Zhang', 22, 'alice@example.com', '13800138000', 89.50),
(2, 'Bob Li', 21, 'bob@example.com', '13900139000', 76.80),
(3, 'Charlie Wang', 23, 'charlie@example.com', '13600136000', 92.00);
info

For capturing DELETE operations: Enable REPLICA IDENTITY FULL on your tables:

ALTER TABLE student REPLICA IDENTITY FULL;

This ensures DELETE events include full row data, not just the primary key.

Download the pre-packaged Flink bundle that includes Flink, all required connectors, and JDK:

curl -O https://apache-doris-releases.oss-accelerate.aliyuncs.com/extention/flink-1.17.2-with-doris-connector.tar.gz
tar -xzf flink-1.17.2-with-doris-connector.tar.gz
cd flink-1.17.2-with-doris-connector
export JAVA_HOME=$(pwd)/jdk
info

This package includes Flink 1.17.2, Doris Connector, PostgreSQL CDC Connector, JDBC drivers, and bundled JDK for Linux. No separate Java installation required.

3. Create Target Database in VeloDB​

Before running Flink CDC, create the target database in VeloDB using the SQL Editor:

CREATE DATABASE IF NOT EXISTS <your_velodb_database>;
info

Database must exist in VeloDB. Tables are auto-created by Flink Doris Connector based on PostgreSQL schema.

4. Run​

bin/flink run -t local \
    -Dexecution.checkpointing.interval=10s \
    -Dparallelism.default=1 \
    -c org.apache.doris.flink.tools.cdc.CdcTools \
    lib/flink-doris-connector-1.17-25.1.0.jar \
    postgres-sync-database \
    --database "<YOUR_VELODB_DATABASE>" \
    --postgres-conf hostname="<YOUR_POSTGRES_HOST>" \
    --postgres-conf port="5432" \
    --postgres-conf username="<YOUR_POSTGRES_USER>" \
    --postgres-conf password="<YOUR_POSTGRES_PASSWORD>" \
    --postgres-conf database-name="<YOUR_POSTGRES_DATABASE>" \
    --postgres-conf schema-name="public" \
    --postgres-conf slot.name="velodb_cdc_slot" \
    --postgres-conf decoding.plugin.name=pgoutput \
    --including-tables ".*" \
    --sink-conf fenodes="<YOUR_VELODB_HOST>:8080" \
    --sink-conf username="<YOUR_VELODB_USER>" \
    --sink-conf password="<YOUR_VELODB_PASSWORD>" \
    --sink-conf jdbc-url="jdbc:mysql://<YOUR_VELODB_HOST>:9030" \
    --sink-conf sink.label-prefix=postgres_cdc
info

For Aurora/RDS: Add --postgres-conf publication.name="<YOUR_PUBLICATION_NAME>" parameter.

5. Verify​

Navigate to the SQL Editor in the VeloDB Console and select your database.

Check initial sync in VeloDB:

SELECT * FROM student;

Expected result:

+----+--------------+------+---------------------+-------------+-------+---------------------+
| id | name         | age  | email               | phone       | score | created_at          |
+----+--------------+------+---------------------+-------------+-------+---------------------+
|  1 | Alice Zhang  |   22 | alice@example.com   | 13800138000 | 89.50 | 2025-12-22 14:30:25 |
|  2 | Bob Li       |   21 | bob@example.com     | 13900139000 | 76.80 | 2025-12-22 14:30:25 |
|  3 | Charlie Wang |   23 | charlie@example.com | 13600136000 | 92.00 | 2025-12-22 14:30:25 |
+----+--------------+------+---------------------+-------------+-------+---------------------+

Test real-time CDC:

-- Run in PostgreSQL
INSERT INTO student (id, name, age, email, phone, score)
VALUES (4, 'David Chen', 24, 'david@example.com', '13400134000', 88.75);

UPDATE student SET score = 95.00 WHERE id = 2;

DELETE FROM student WHERE id = 3;
-- Verify in VeloDB (changes appear within seconds)
SELECT * FROM student ORDER BY id;

Expected result:

+----+-------------+------+-------------------+-------------+-------+---------------------+
| id | name        | age  | email             | phone       | score | created_at          |
+----+-------------+------+-------------------+-------------+-------+---------------------+
|  1 | Alice Zhang |   22 | alice@example.com | 13800138000 | 89.50 | 2025-12-22 14:30:25 |
|  2 | Bob Li      |   21 | bob@example.com   | 13900139000 | 95.00 | 2025-12-22 14:30:25 |
|  4 | David Chen  |   24 | david@example.com | 13400134000 | 88.75 | 2025-12-22 14:35:40 |
+----+-------------+------+-------------------+-------------+-------+---------------------+
-- id=2: score updated 76.80 → 95.00
-- id=3: deleted
-- id=4: inserted
