Build a Customer Support 360 View from MySQL with VeloDB Cloud
A customer asks, “Where is my order?” The support team needs an answer that includes the customer's details, the latest order state, and the status of the related support ticket.
This tutorial keeps MySQL as the operational system of record. VeloDB Cloud receives a continuously updated analytical copy of three selected tables. A SQL query then identifies the customer cases that need follow-up. When the order ships and the support ticket is resolved in MySQL, the query result changes after the next sync cycle.
Customer, order, and ticket updates in MySQL
↓
Initial load and incremental sync into VeloDB Cloud
↓
Join the latest records with SQL
↓
Identify customer cases that need attention
All names, email addresses, IDs, regions, timestamps, and amounts in this tutorial are synthetic. This is a functional tutorial, not a performance benchmark.
Prerequisites
This tutorial uses managed MySQL import, which is in Public Preview and currently documented for VeloDB Cloud 26.1.x warehouses. Check that guide for source configuration and version requirements before creating a job.
You need:
- A reachable MySQL source compatible with MySQL 5.6, 5.7, or 8.0.x.
- A running VeloDB Cloud warehouse with permission to create the target database, tables, and import job. Follow the VeloDB Cloud Quick Start if you need to create one.
- A source setup account that can create and update the demo tables, and an import account with permission to read those tables and replicate their changes.
- Binary logging enabled with row-based logging and full row images. Confirm the requirements in the MySQL import guide.
Use a dedicated demo database on a supported MySQL deployment. The example creates or resets the listed synthetic rows, so avoid reusing tables that contain other data.
Follow Connect for Import to prepare connectivity for your SaaS or BYOC warehouse. For this walkthrough, use a publicly reachable demo source with restricted network access. A private source needs the network configuration described in that guide.
1. Create the synthetic source data
If you previously used a version of this tutorial whose support_tickets table did not include order_id, use a new demo database and update the source selection accordingly, or remove only the old demo tables before continuing. CREATE TABLE IF NOT EXISTS does not alter an existing schema.
Run the following SQL in the source MySQL database. It creates one customer case that needs attention: Olivia Carter has a paid but unshipped order and an open, high-priority ticket.
CREATE DATABASE IF NOT EXISTS customer_360_demo;
USE customer_360_demo;
SET time_zone = '+00:00';
CREATE TABLE IF NOT EXISTS customers (
customer_id BIGINT PRIMARY KEY,
customer_name VARCHAR(100) NOT NULL,
email VARCHAR(255) NOT NULL,
region VARCHAR(50) NOT NULL,
plan VARCHAR(50) NOT NULL,
updated_at DATETIME NOT NULL
);
CREATE TABLE IF NOT EXISTS orders (
order_id BIGINT PRIMARY KEY,
customer_id BIGINT NOT NULL,
status VARCHAR(20) NOT NULL,
paid_at DATETIME,
shipped_at DATETIME,
amount DECIMAL(10, 2) NOT NULL,
updated_at DATETIME NOT NULL
);
CREATE TABLE IF NOT EXISTS support_tickets (
ticket_id BIGINT PRIMARY KEY,
customer_id BIGINT NOT NULL,
order_id BIGINT NOT NULL,
subject VARCHAR(255) NOT NULL,
status VARCHAR(20) NOT NULL,
priority VARCHAR(20) NOT NULL,
updated_at DATETIME NOT NULL
);
INSERT INTO customers VALUES
(20001, 'Olivia Carter', 'olivia.carter@example.com', 'East', 'Plus', NOW()),
(20002, 'Ethan Brooks', 'ethan.brooks@example.com', 'South', 'Standard', NOW())
ON DUPLICATE KEY UPDATE
customer_name = VALUES(customer_name),
email = VALUES(email),
region = VALUES(region),
plan = VALUES(plan),
updated_at = VALUES(updated_at);
INSERT INTO orders VALUES
(50001, 20001, 'paid', DATE_SUB(NOW(), INTERVAL 2 HOUR), NULL, 299.00, NOW()),
(50002, 20002, 'shipped', DATE_SUB(NOW(), INTERVAL 3 HOUR),
DATE_SUB(NOW(), INTERVAL 2 HOUR), 499.00, NOW())
ON DUPLICATE KEY UPDATE
customer_id = VALUES(customer_id),
status = VALUES(status),
paid_at = VALUES(paid_at),
shipped_at = VALUES(shipped_at),
amount = VALUES(amount),
updated_at = VALUES(updated_at);
INSERT INTO support_tickets VALUES
(70001, 20001, 50001, 'Where is my order?', 'open', 'high', NOW()),
(70002, 20002, 50002, 'Delivery confirmation', 'resolved', 'low', NOW())
ON DUPLICATE KEY UPDATE
customer_id = VALUES(customer_id),
order_id = VALUES(order_id),
subject = VALUES(subject),
status = VALUES(status),
priority = VALUES(priority),
updated_at = VALUES(updated_at);
The ON DUPLICATE KEY UPDATE clauses make the setup repeatable for the schema shown above. Running the script again restores the same synthetic starting state instead of creating duplicate rows.
2. Synchronize the tables into VeloDB Cloud
-
Log in to the VeloDB Cloud console.
-
In the upper-left corner, select the warehouse that you want to use.
-
In the left navigation pane, click SQL Editor and create the target database:
CREATE DATABASE IF NOT EXISTS customer_360_velodb; -
In the left navigation pane, click Data Integration. Click Add Import Job on the initial page. If integration records already exist, in the upper-right corner, choose Add Data > Import data into VeloDB. Select MySQL, then click Continue. For more information about the wizard, see Import Data.
Configure the source connection:
| Setting | Example value |
|---|---|
| Job Name | mysql_customer_360_to_velodb |
| Host | <your-mysql-host> |
| Port | <your-mysql-port> |
| User | <your-mysql-user> |
| Password | Enter the password in the console. Do not add it to source code. |
| Enable SSL | Enable encrypted connections to the source. |
Then configure the destination and tables:
| Setting | Value used in this tutorial |
|---|---|
| Target Database | Select Existing Database, then customer_360_velodb. |
| Sync Type | Initial Load + Incremental Sync |
| Select Tables to Migrate | customer_360_demo.customers, customer_360_demo.orders, and customer_360_demo.support_tickets |
| Sync Interval (s) | 60 |
For a SaaS warehouse and this public demo source, leave Reverse Private Endpoint disabled. For a private source, use the network path prepared in Connect for Import. BYOC source connectivity is configured in your cloud network.
The wizard provides Enable SSL for encrypted source connections. If your source requires additional certificate configuration, contact VeloDB Cloud support to confirm the connection options.
Under Settings, select the target Cluster and set Sync Interval (s) to 60. Complete Verify and Confirm, resolve any failed pre-checks, and click Start. Open Import Jobs to monitor the initial load before running the verification queries.
The first sync copies the existing rows. Incremental sync then captures later source changes. When the initial load has finished for all selected tables, run these queries in SQL Editor:
SELECT COUNT(*) AS customer_count
FROM customer_360_velodb.customers;
SELECT COUNT(*) AS order_count
FROM customer_360_velodb.orders;
SELECT COUNT(*) AS ticket_count
FROM customer_360_velodb.support_tickets;
The expected counts are two customers, two orders, and two support tickets. The attention query stops matching when either the order or ticket no longer meets its filter. Use the final verification query to check both changed records.
3. Find customer cases that need attention
Run the following query in SQL Editor:
SET time_zone = 'UTC';
SELECT
c.customer_name,
c.region,
o.order_id,
o.status AS order_status,
o.amount,
t.subject,
t.priority,
t.status AS ticket_status
FROM customer_360_velodb.customers AS c
JOIN customer_360_velodb.orders AS o
ON c.customer_id = o.customer_id
JOIN customer_360_velodb.support_tickets AS t
ON c.customer_id = t.customer_id
AND o.order_id = t.order_id
WHERE t.status = 'open'
AND t.priority = 'high'
AND o.status = 'paid'
AND o.shipped_at IS NULL
ORDER BY t.updated_at DESC;

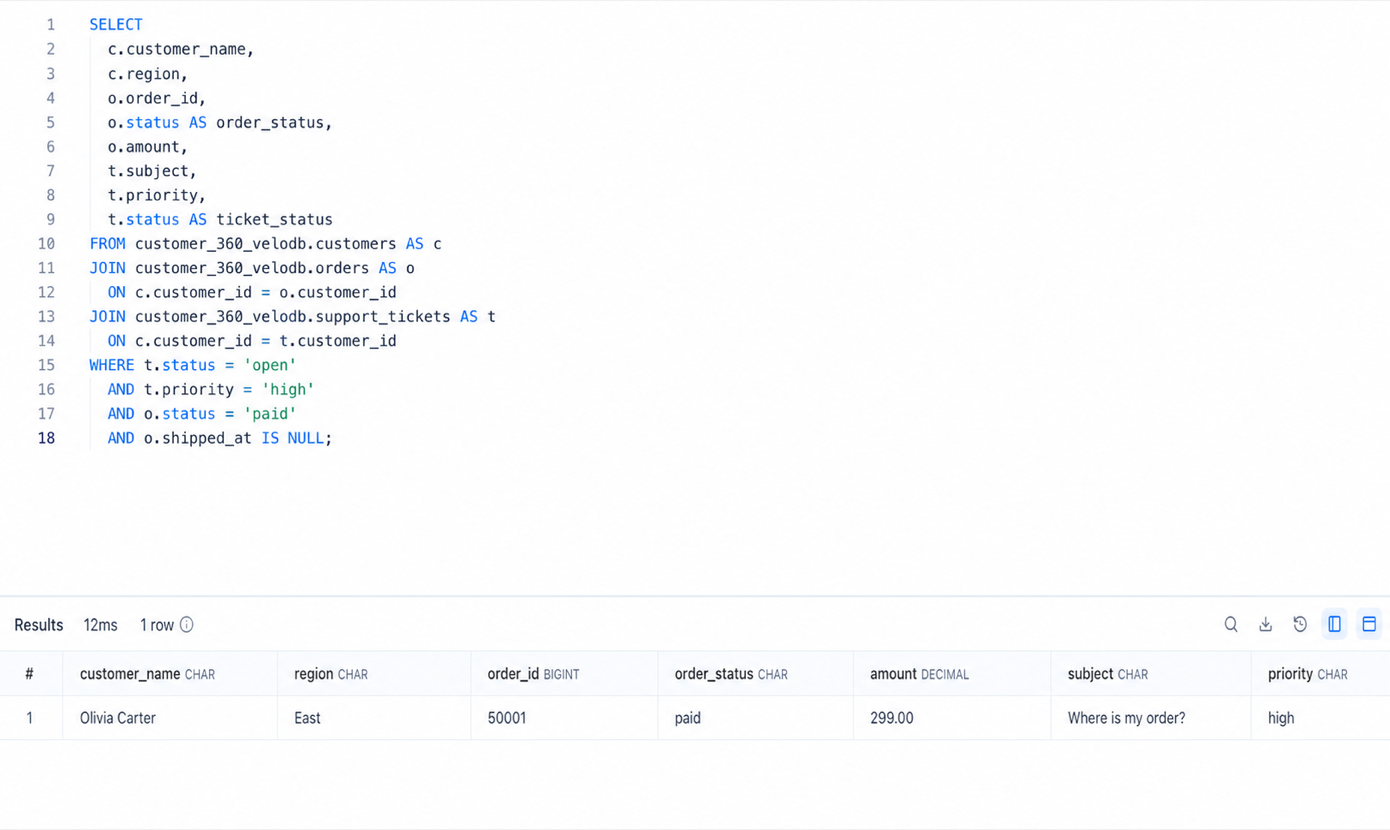

The query returns Olivia Carter's case. The join uses customer_id and order_id so each ticket is associated with the correct order, including when one customer has multiple orders. It then filters for open, high-priority tickets about paid orders that have not shipped.

4. Resolve the case in MySQL
Update the source order and support ticket when the shipment is confirmed:
USE customer_360_demo;
UPDATE orders
SET status = 'shipped',
shipped_at = NOW(),
updated_at = NOW()
WHERE order_id = 50001;
UPDATE support_tickets
SET status = 'resolved',
updated_at = NOW()
WHERE ticket_id = 70001;
This represents the normal operational change: the order has shipped and the support team has closed the customer case.
5. Confirm the updated result in VeloDB Cloud
Wait for a successful synchronization cycle, then run the same VeloDB Cloud query again. The configured interval is a scheduling setting, so the change can take longer than one interval to become visible. After both updates are synchronized, the query returns no rows because Olivia's order is shipped and the related ticket is resolved.
To confirm that the records are still present with their latest values, run:
SELECT
c.customer_name,
o.order_id,
o.status AS order_status,
t.ticket_id,
t.status AS ticket_status
FROM customer_360_velodb.customers AS c
JOIN customer_360_velodb.orders AS o
ON c.customer_id = o.customer_id
JOIN customer_360_velodb.support_tickets AS t
ON c.customer_id = t.customer_id
AND o.order_id = t.order_id
WHERE c.email = 'olivia.carter@example.com';
The result shows shipped for the order and resolved for the ticket.

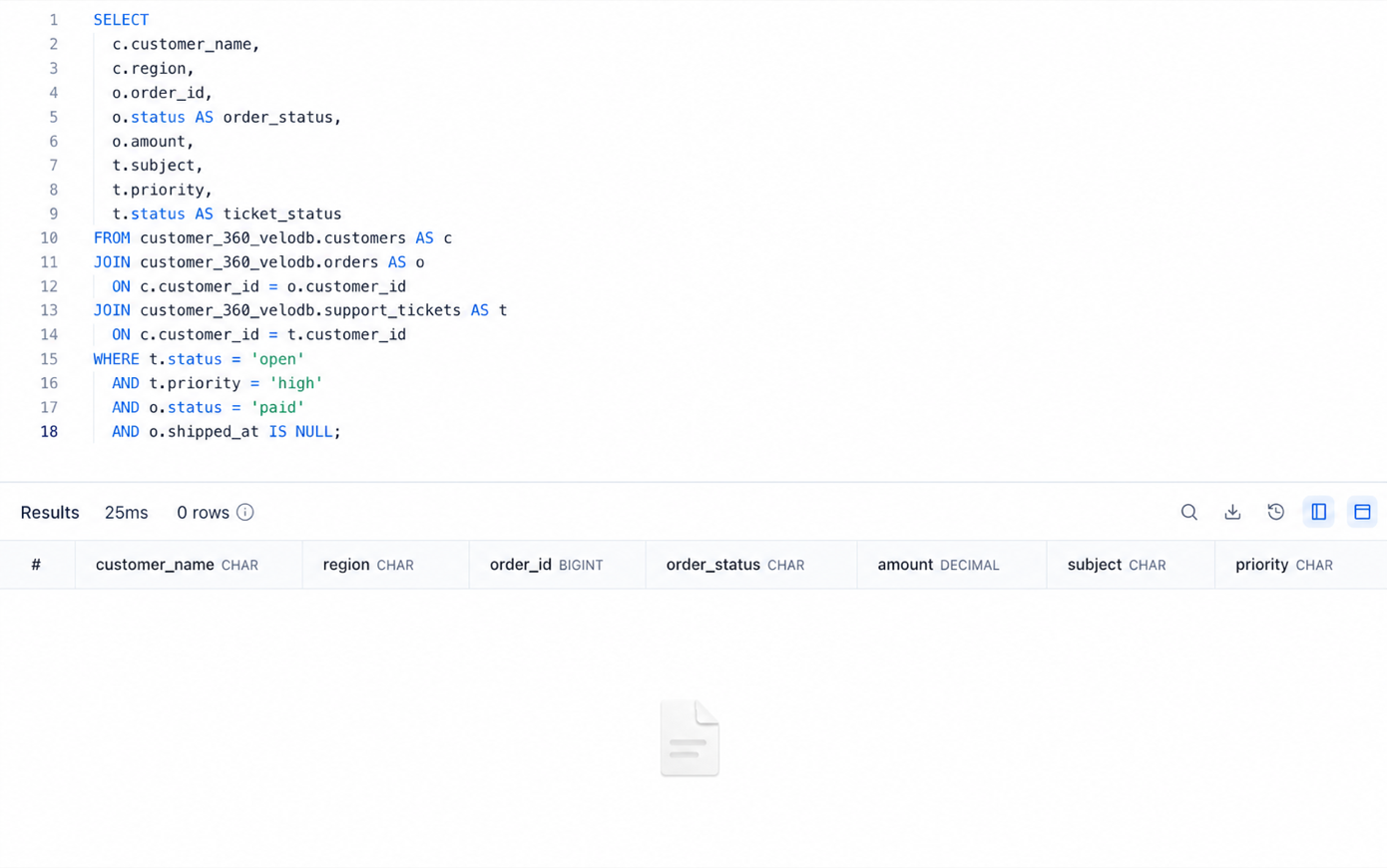

The empty result is expected. The attention query no longer matches the resolved case, while the source records remain available in VeloDB Cloud with their latest values.
The example uses a 60-second sync interval. Actual freshness depends on source activity, job backlog, and available resources. Verify the changed values before relying on an empty exception result.
Why use VeloDB Cloud for this workflow?
MySQL remains the system that processes customer, order, and ticket updates. VeloDB Cloud receives a continuously updated analytical copy and handles the cross-table operational query.
This separation lets support and operations teams investigate live customer cases without placing the same analytical workload on the transactional database. You can extend the pattern with more order history, additional ticket attributes, payment events, or an optional selective-search index for larger datasets.
Common errors
| Symptom | What to check |
|---|---|
| The connection pre-check fails | Confirm the source host and port, network access rules, TLS certificates, and the selected private endpoint if used. |
| Existing rows do not appear | Confirm that Initial Load + Incremental Sync is selected and that the initial load completed for every selected table. |
| A source update does not appear | Open the import job details and inspect failed tasks. Check replication permissions, source change-log configuration, and job backlog. |
| Counts or query results differ from the example | Check that you selected the demo source tables and the correct target database. Rerun the setup only in the dedicated demo database to restore the starting state. |
If the attention query is empty unexpectedly, run the final verification query to inspect the stored order and ticket status. An empty result alone does not prove that synchronization succeeded.
Cost and cleanup
The source database, running warehouse compute, stored data, and data transfer can incur charges. Review Billing before leaving the demo running.
When you finish:
-
In Data Integration > Import Jobs, find the demo job, choose Delete, and confirm that you are deleting the demo job.
-
If the target database contains only this tutorial's data, remove it in SQL Editor:
DROP DATABASE customer_360_velodb; -
Remove the synthetic source tables or source database only after confirming that they are dedicated to this tutorial.
-
If you created a cluster solely for the demo, pause it when it has no other workloads. Pausing compute does not remove retained storage or cache charges.
Production considerations
- Use a dedicated MySQL account with only the permissions required for synchronization.
- Store credentials in a secret manager instead of scripts or screenshots.
- Use TLS certificate verification and private networking when appropriate.
- Choose a synchronization interval that matches the operational requirement, then validate it under the expected workload.
- Monitor synchronization status and lag before using the data for alerts.
- Replace the synthetic sample with approved and properly governed production data.
Return to the Customer Support 360 overview to review the business scenario and the VeloDB Cloud capabilities it uses.
