Deploying an Integrated Storage-Compute Cluster

Through Doris Manager, you can deploy Doris clusters on physical machines, virtual machines, and cloud servers, automatically completing environment checks and cluster configurations. To create a new integrated storage-compute cluster, go to the Current Cluster tab, select Create/Manage Cluster, and choose Create Integrated Storage-Compute Cluster.

Important Notes

• You can deploy one FE and one BE on the same server, but you cannot deploy multiple FE or BE instances on a single server;
• Before deployment, you can refer to Cluster Planning (opens in a new tab) to calculate the number of nodes required;
• When adding machines, you must specify IP addresses rather than hostnames.

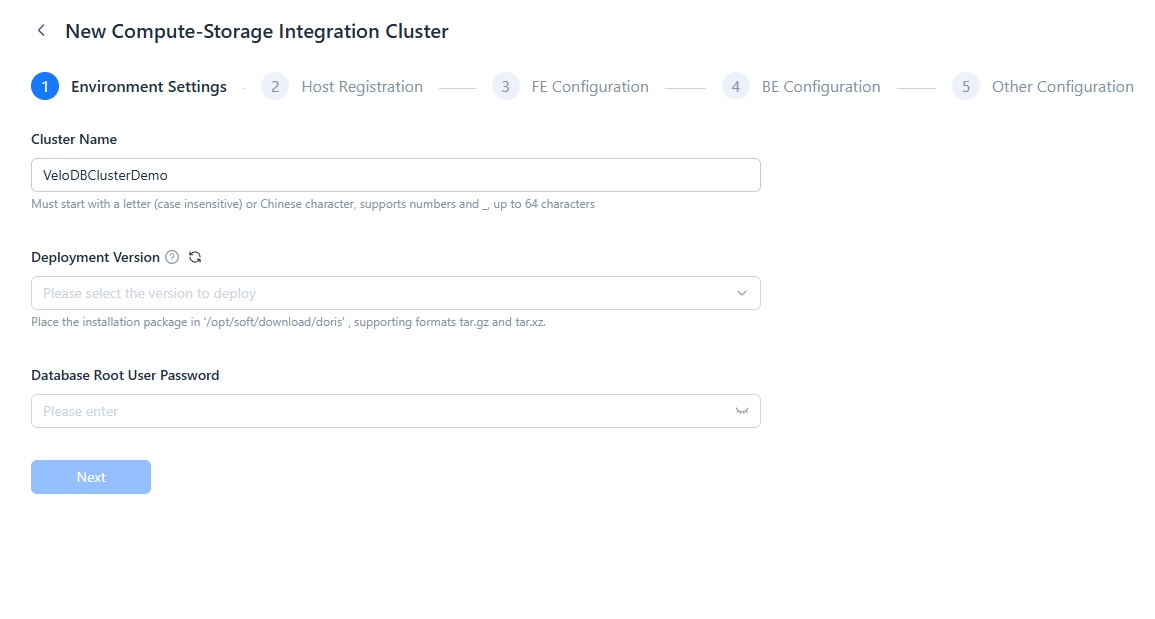

Step 1: Environment Configuration

When configuring the cluster environment, you need to:

• Set the cluster name as prompted
• Select the deployment version
• Specify the database root password

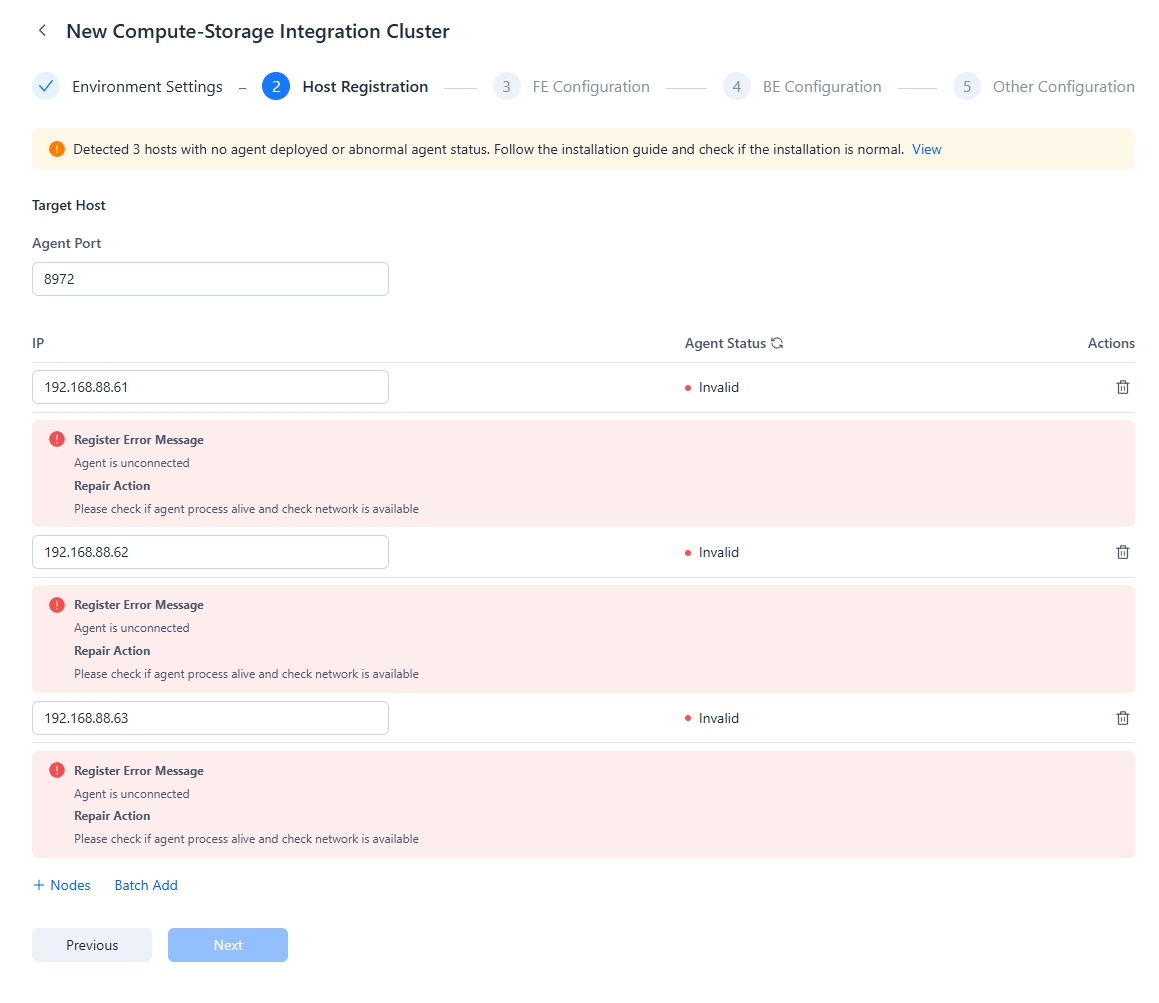

Step 2: Host Registration

To register hosts:

1. Add host IPs and specify the Agent port



   Both IPv4 and IPv6 formats are supported when adding host IPs.

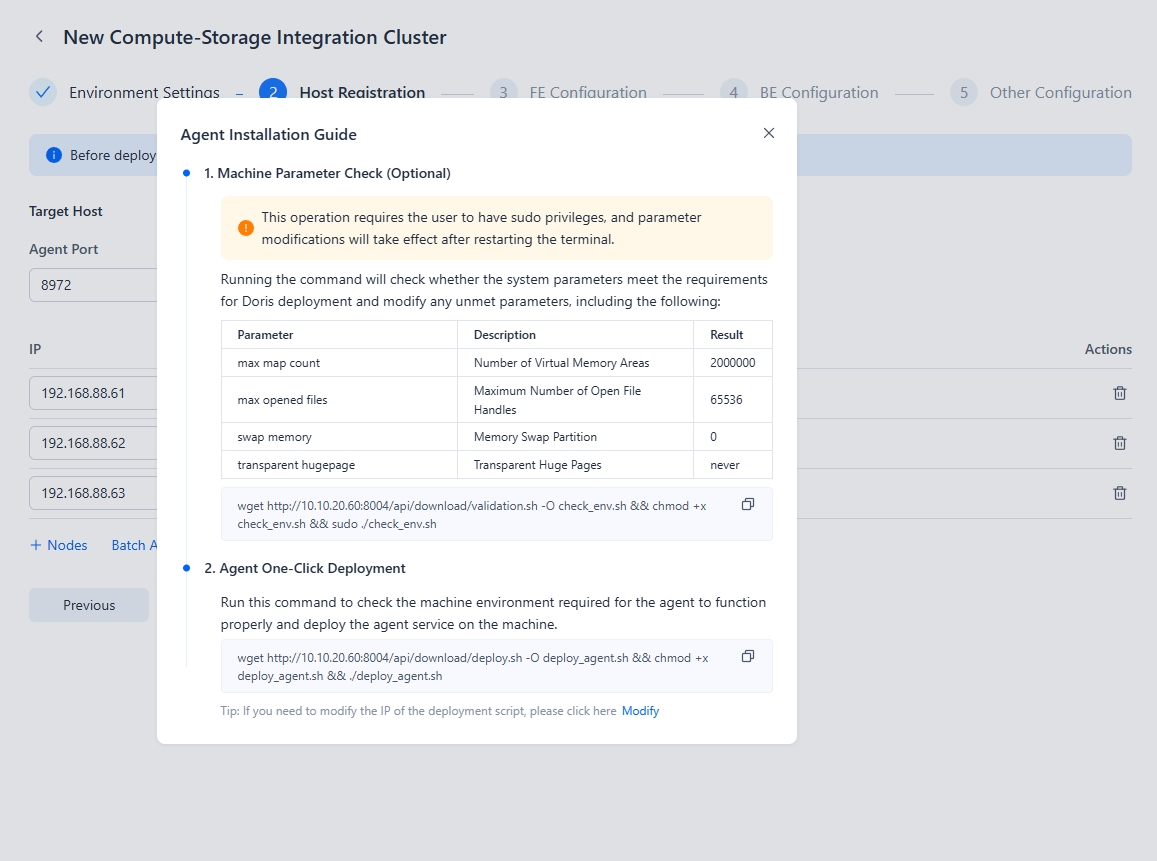

2. Install Agent service on each host



   The Agent installation requires checking machine parameters on each registered host and deploying the Agent service with one click.

   After deployment, ensure the Agent status is "Normal" and refresh the Agent status.

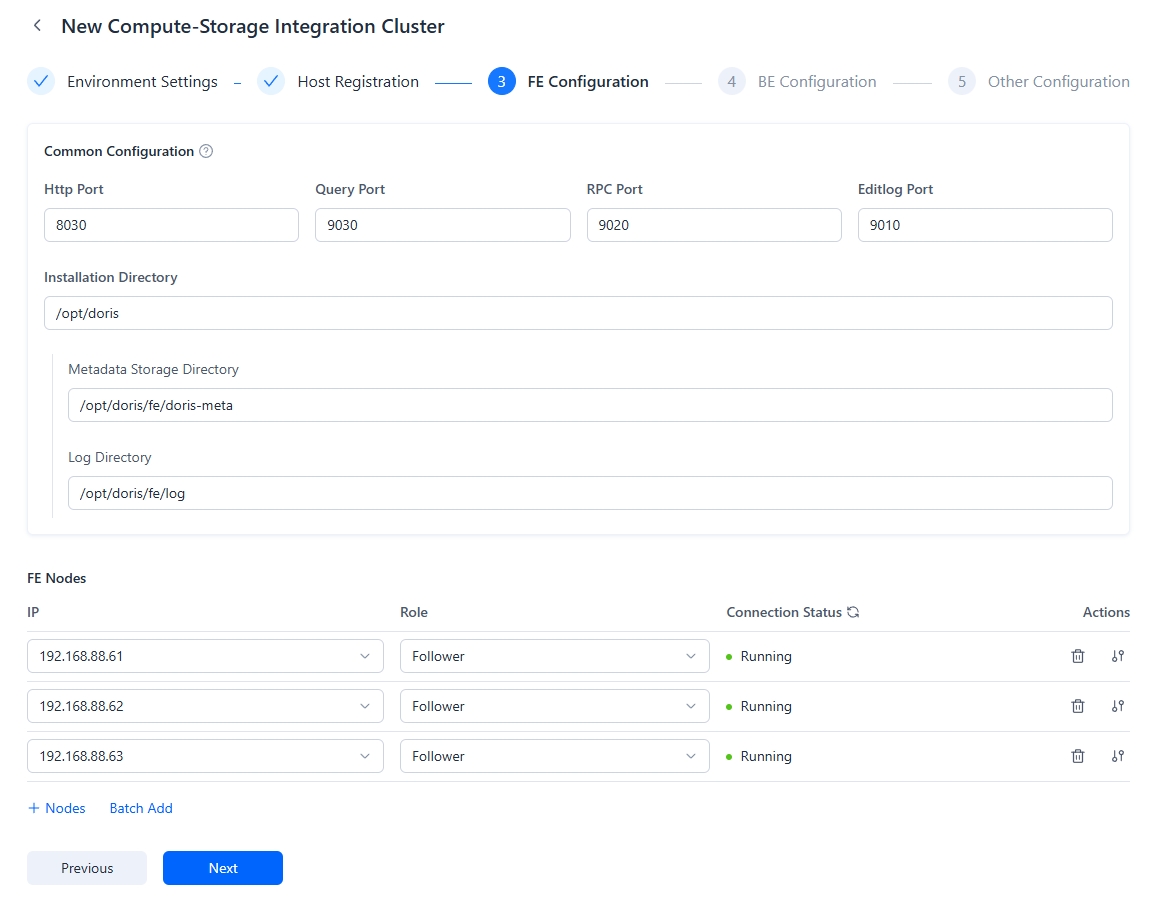

Step 3: FE Configuration

When adding FEs:

• Specify FE roles (opens in a new tab)
• It's recommended to configure 3 FE Followers for high availability

You can choose between:

• General configuration (recommended for consistency)
• Custom configuration for individual FEs

Configuration parameters:

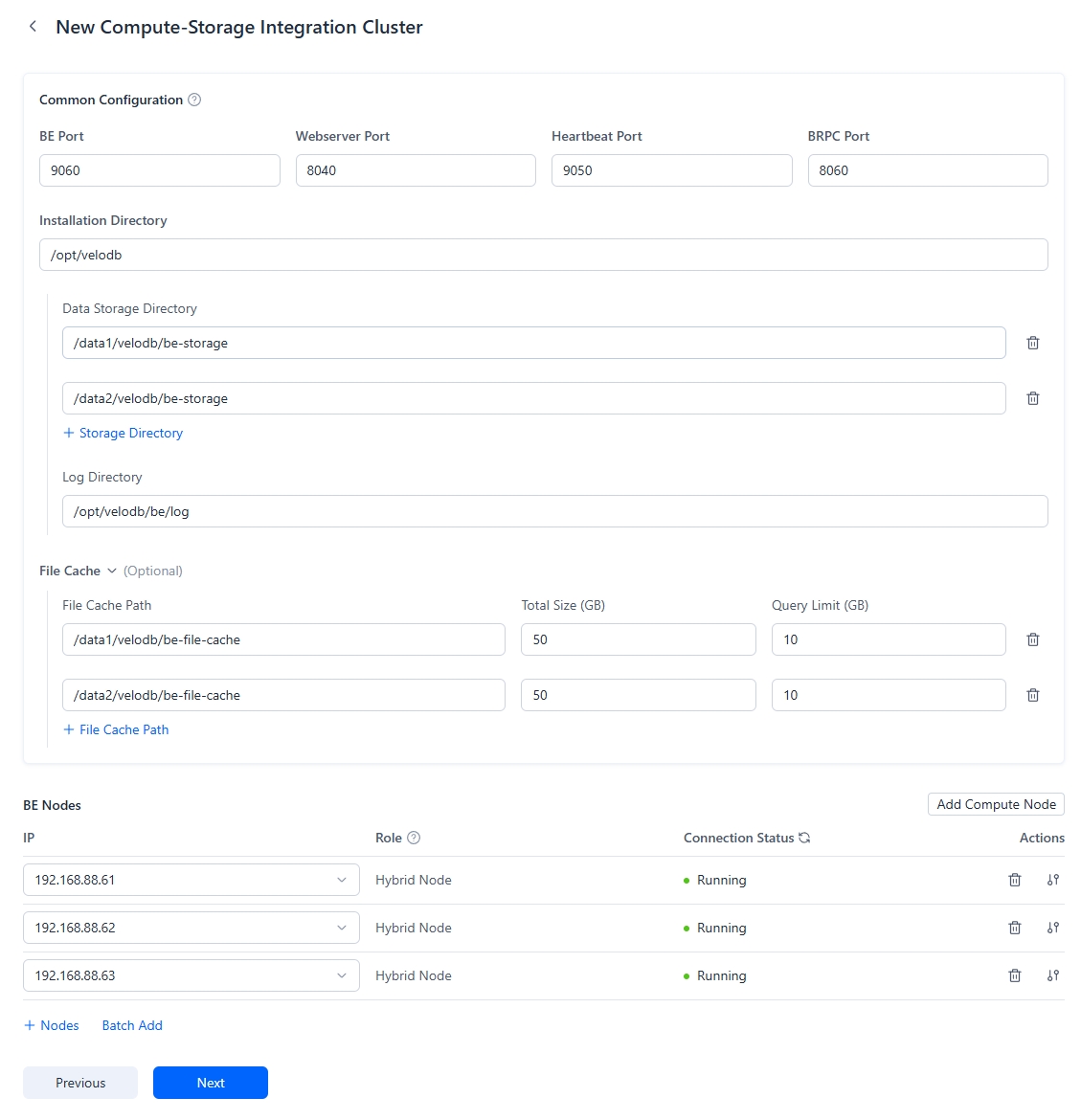

Step 4: BE Configuration

When configuring BEs, choose between:

• Standard Nodes (Hybrid Nodes): Handle both SQL queries and data storage
• Compute Nodes: Process queries only (for federated query scenarios)

Configuration parameters:

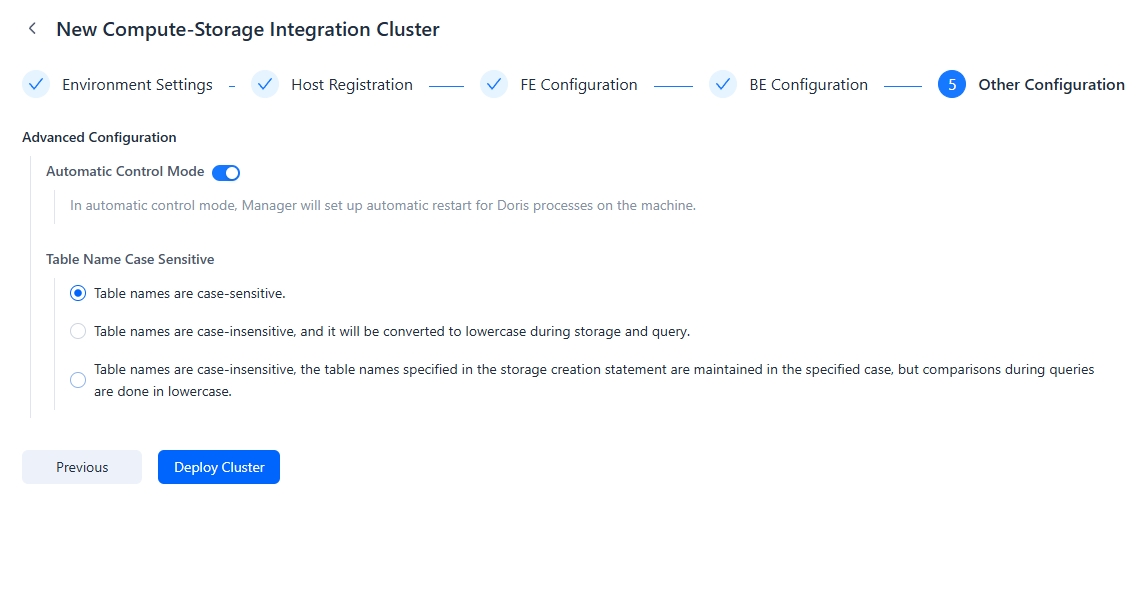

Step 5: Additional Configuration

Configure cluster parameters:

• Auto-restart option
• Case sensitivity for table names
