Doris Cluster Alerts

Cluster Alert Items

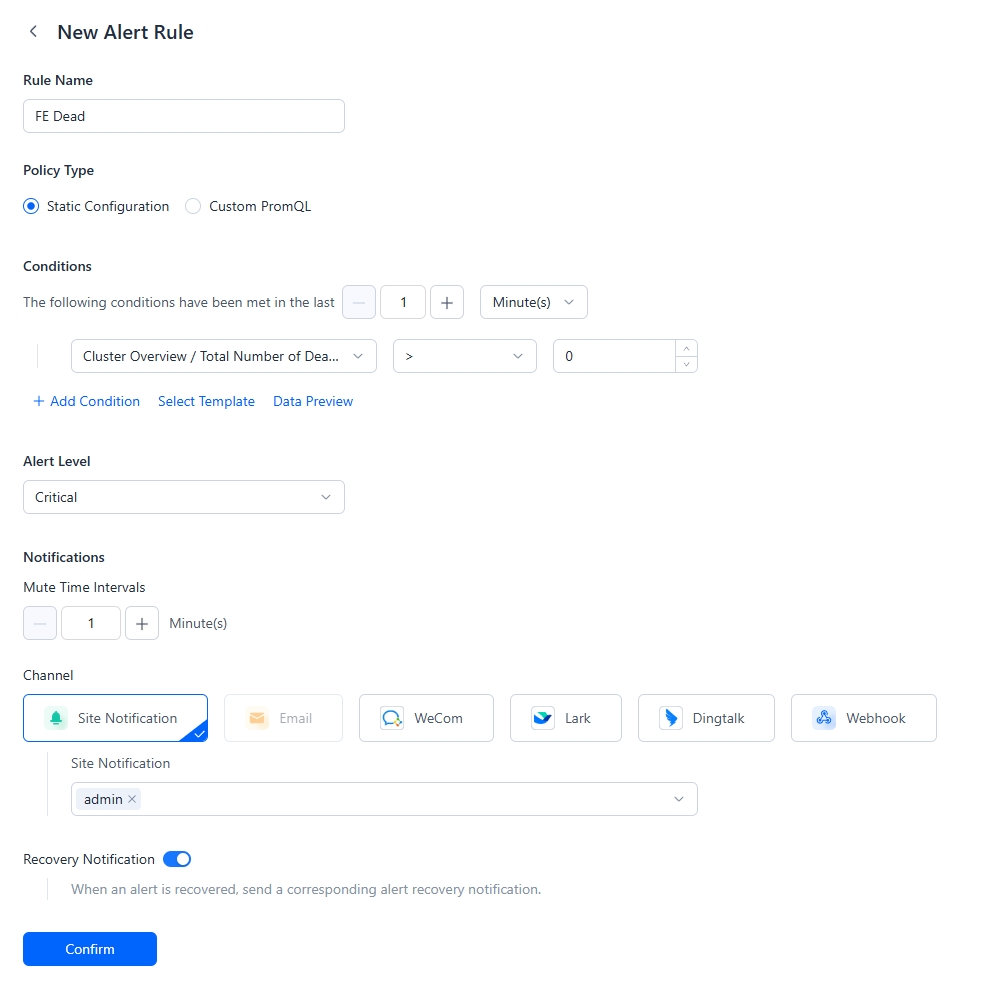

In the alert module, you can configure alert policies. Select "Create New Alert Policy" to create alert items based on your business needs. As shown in the image below, an alert policy for FE has been created; if an FE goes down, an alert notification will be sent.

Configure Notification Delivery

Alert rules can be configured to send notifications via in-site notifications, email, IM tools, or Webhook.

When using IM tools like WeChat Work, DingTalk, or Feishu, ensure connectivity to the public network.

In-site Notifications

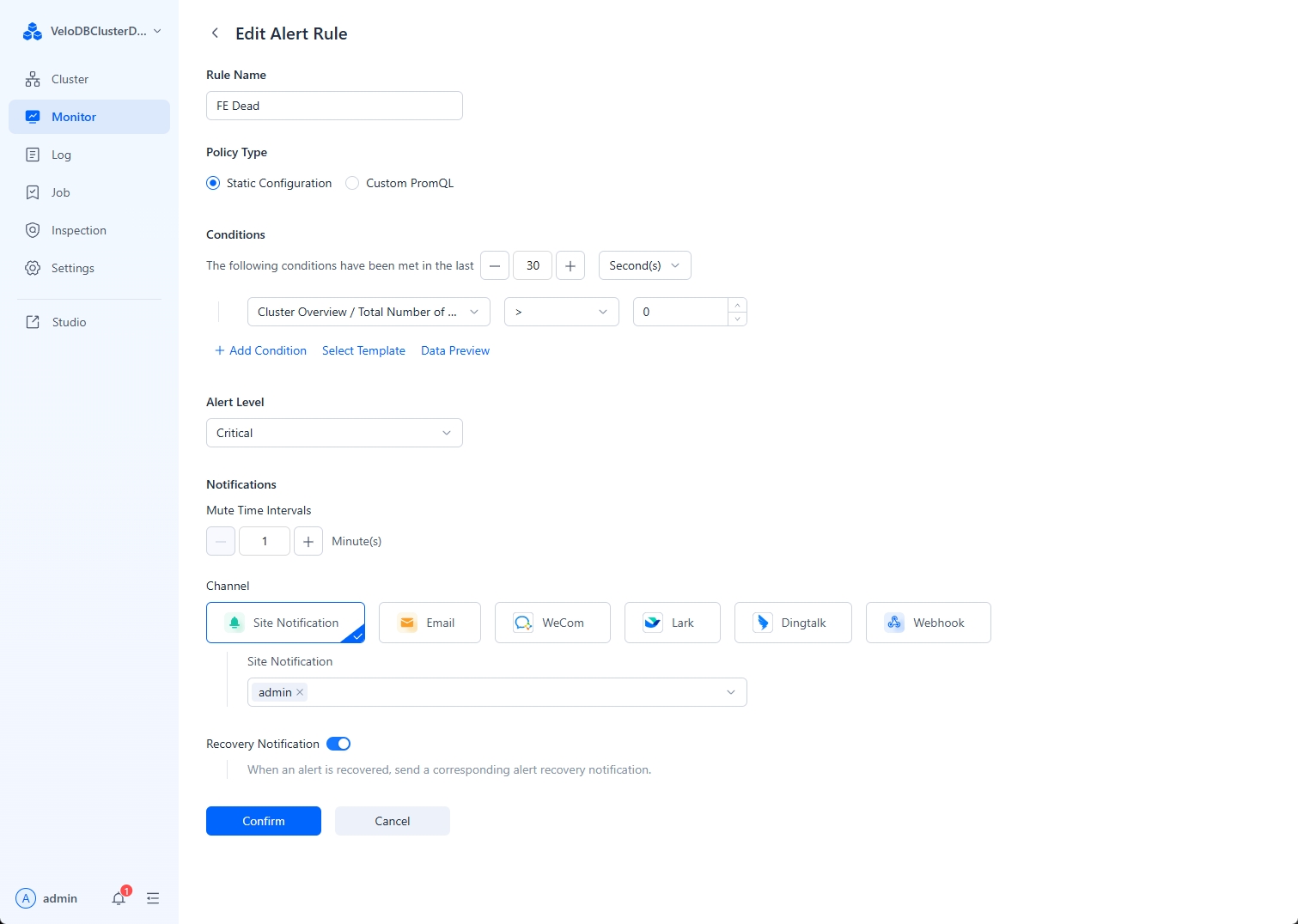

1. Select In-site Alert

   In-site notifications will push alert information within the alert notifications. You need to select the in-site push users.

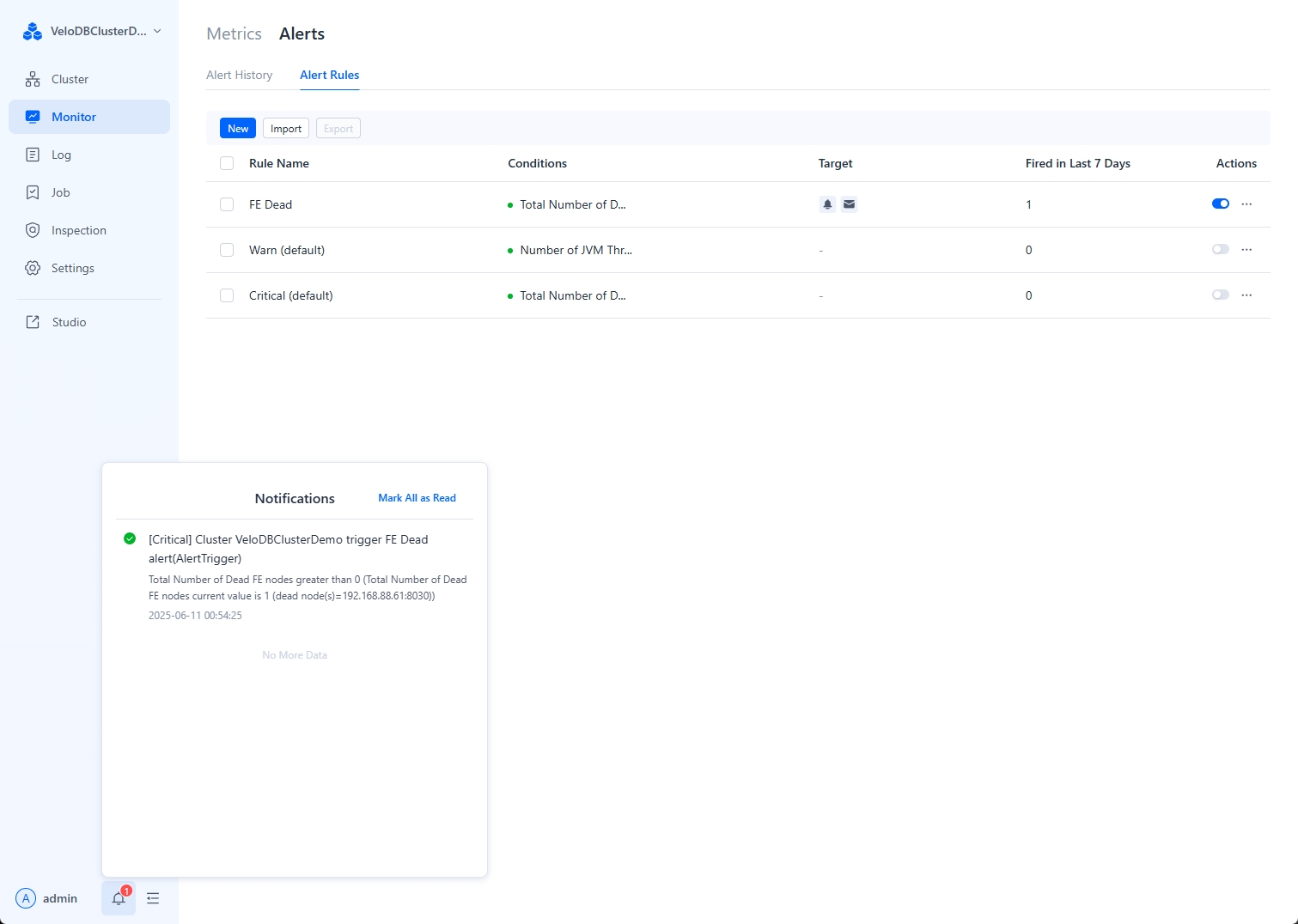

2. View In-site Alerts

   When an alert occurs, you can view the alert information in the notification menu at the bottom left.

Email

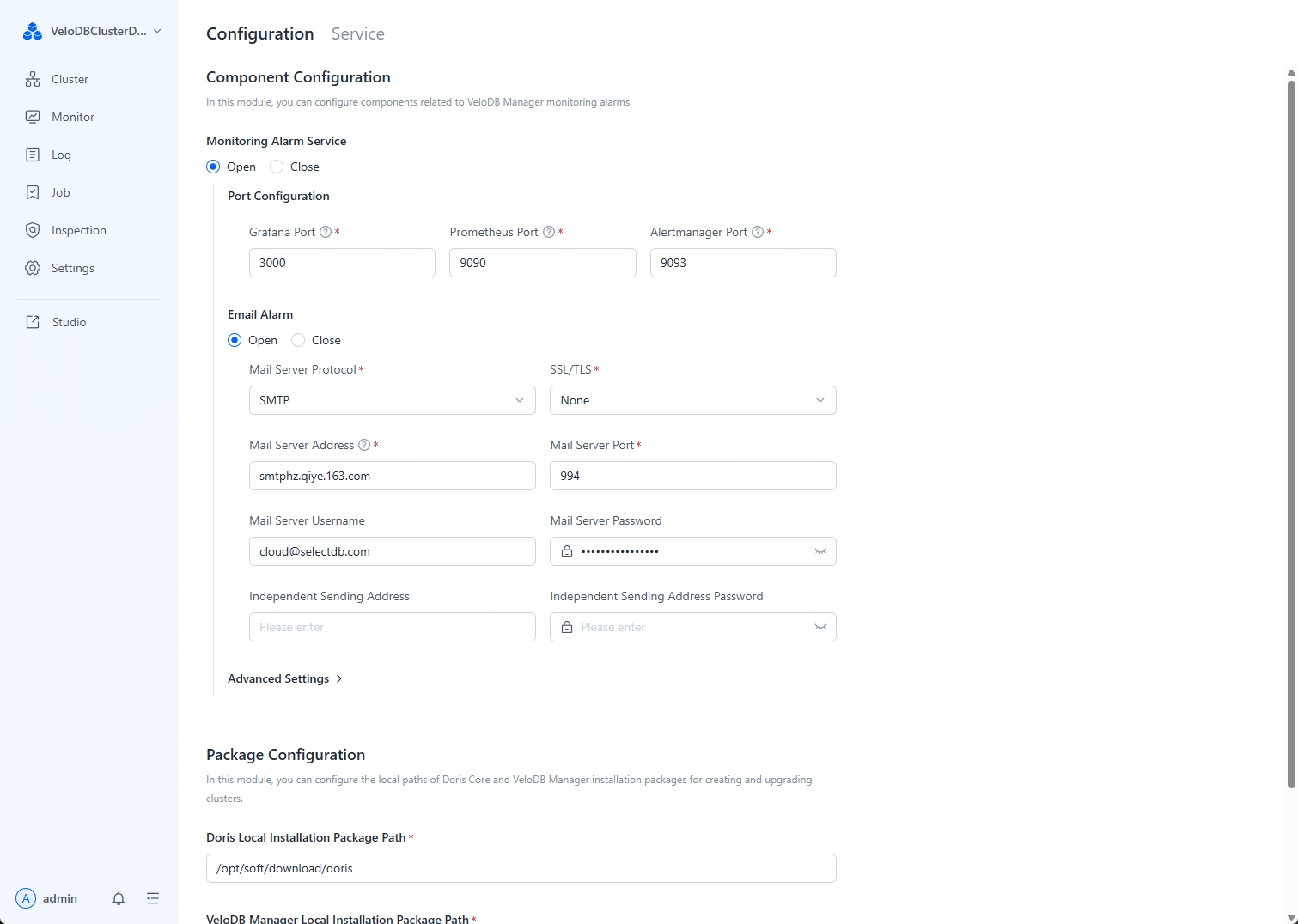

1. Configure Email Alerts

   In the user menu, select "Service Configuration" to enter the configuration menu. Configure the email alert information.

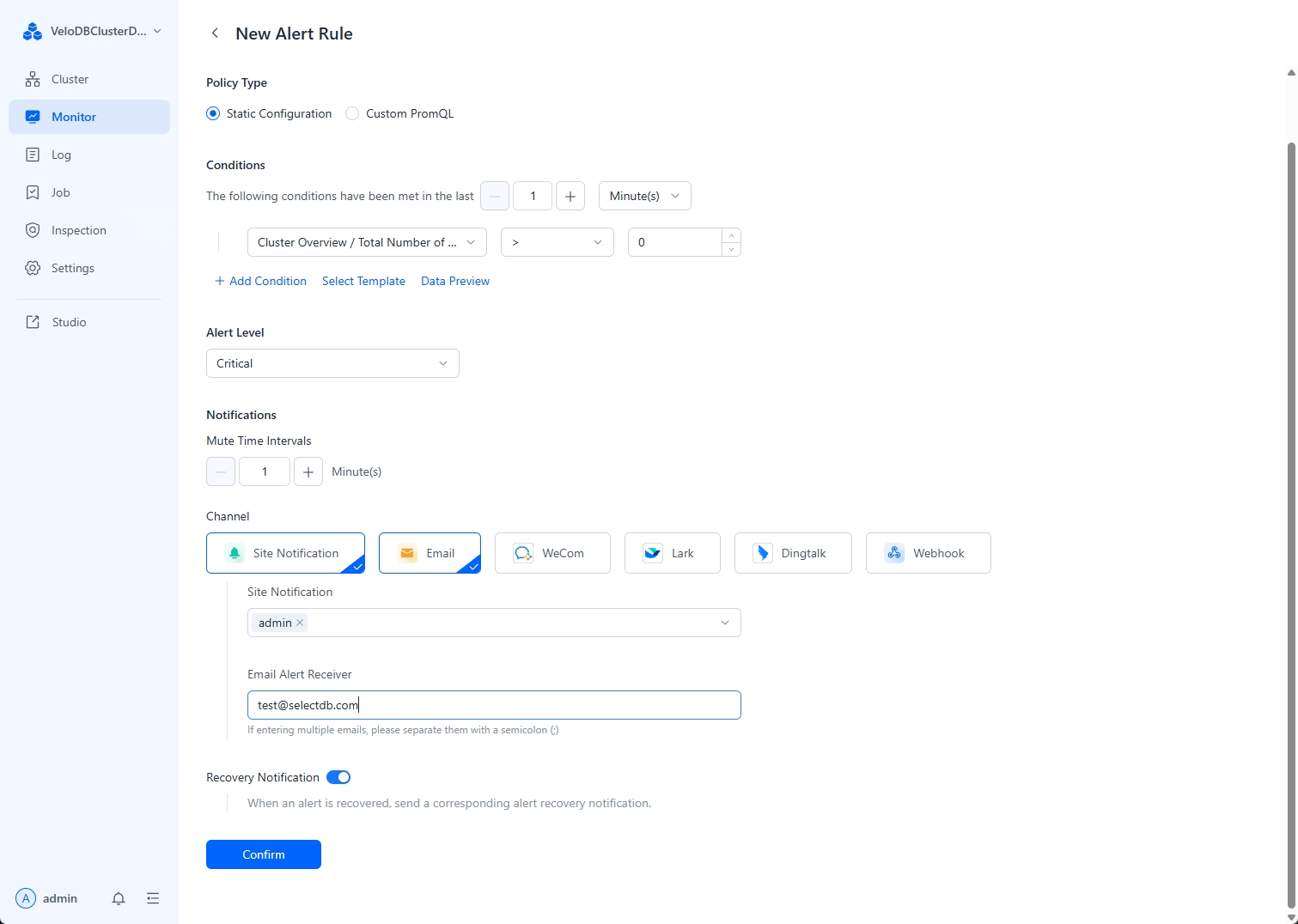

2. Select Email Notification

   Select "Email Notification" as the method and fill in the email addresses of the users who should receive alerts.



WeChat Work

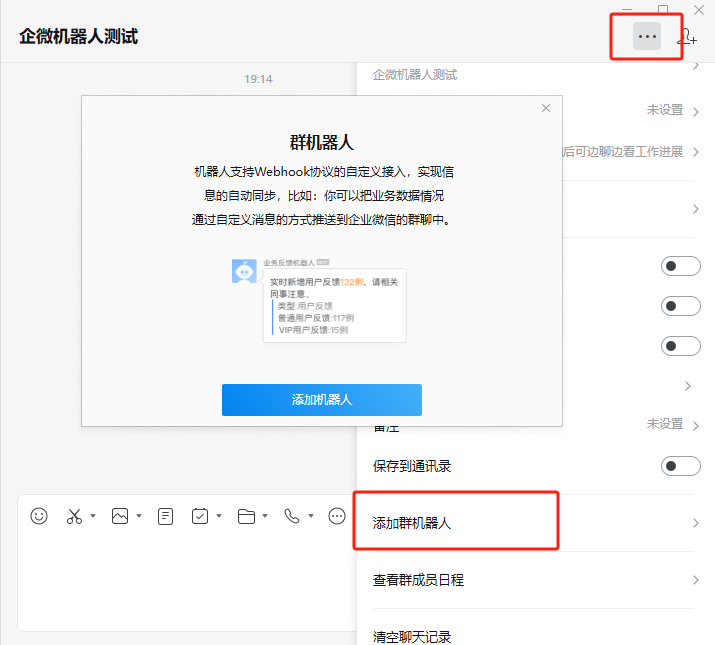

1. Create a WeChat Work Group and Add a Bot

   As shown in the image below, add a WeChat Work bot:

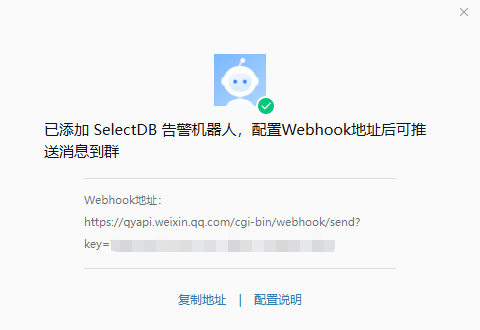

2. Copy Bot Webhook

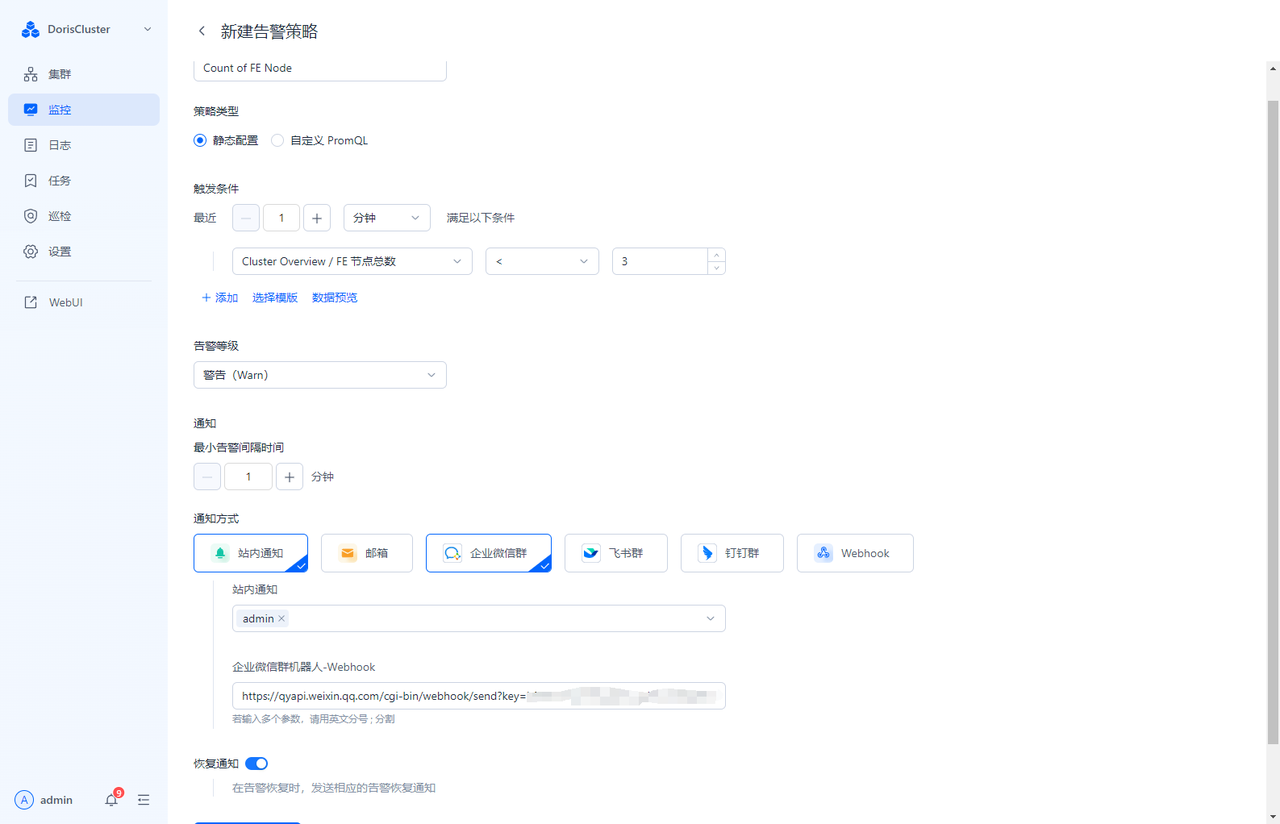

3. Add Bot Webhook in Manager



DingTalk

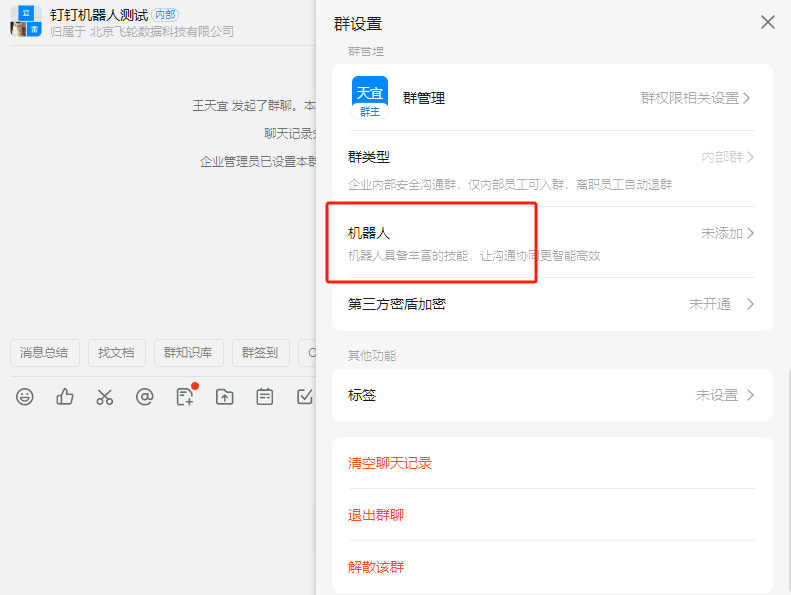

1. Create a DingTalk Group and Add a Group Bot

   As shown in the image below, create a DingTalk group bot in the group settings:

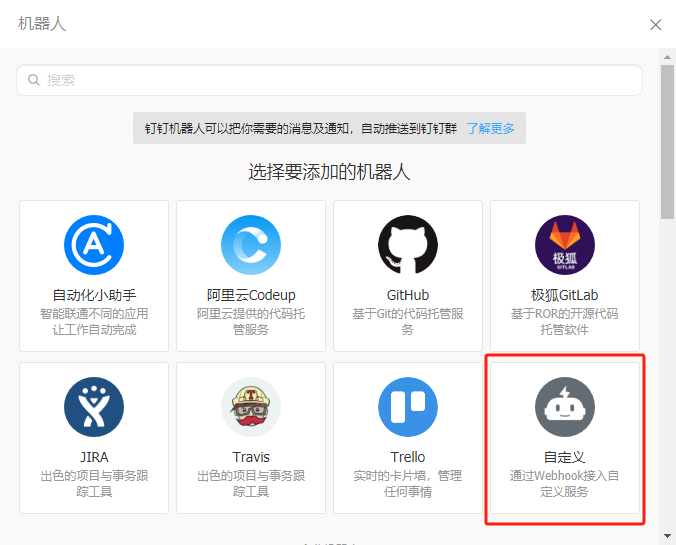

2. Select "Add Webhook Type Bot"

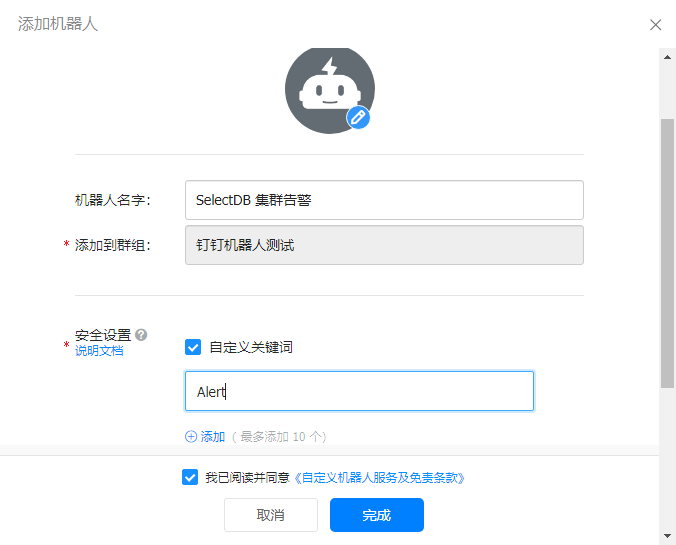

3. Add Keywords for the Bot

   DingTalk bots require both "Alert" and "告警" (alarm/alert in Chinese) keywords to be added, otherwise, alerts will not be received.

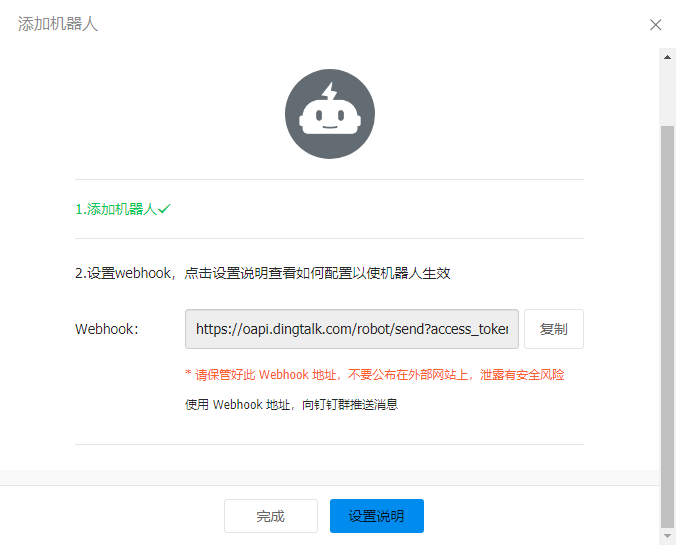

4. Copy DingTalk Bot Webhook

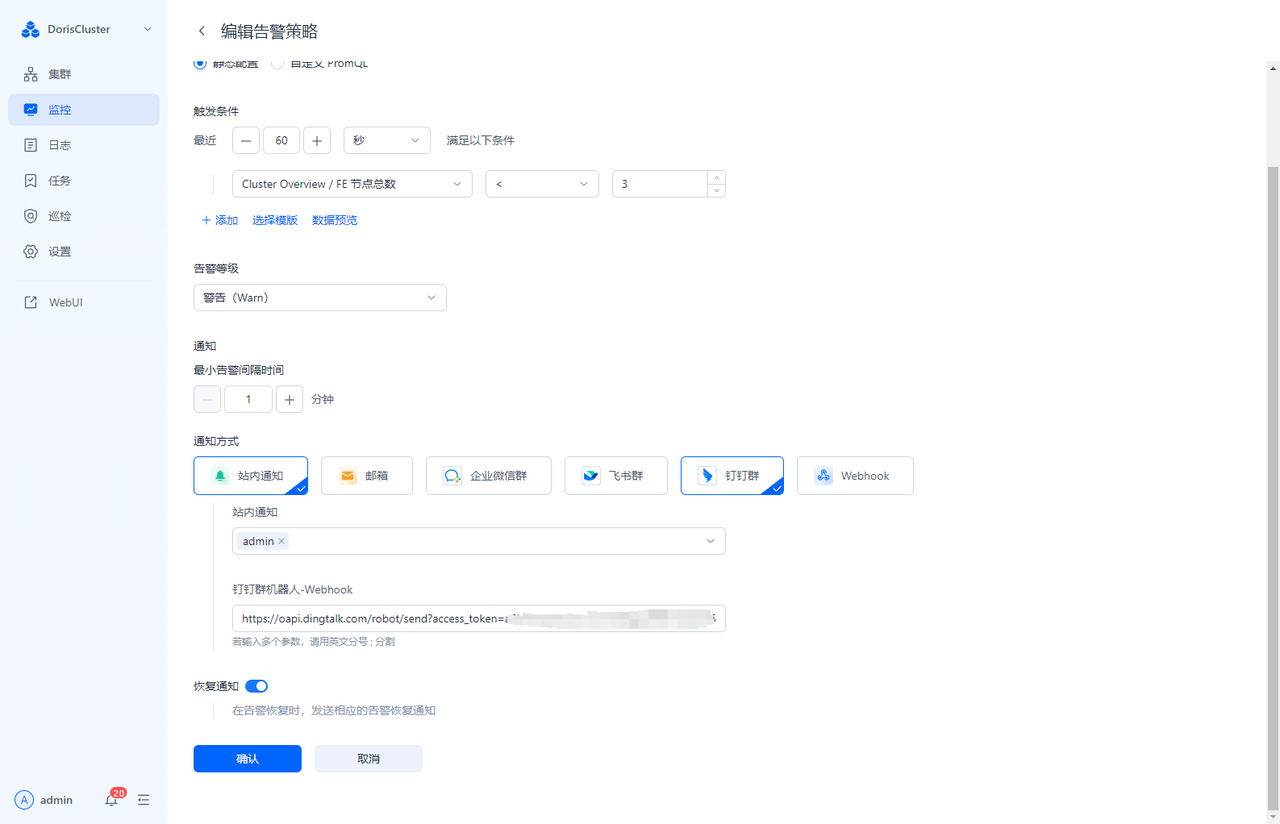

5. Configure DingTalk Bot Webhook for Manager



Feishu

1. Create a Feishu Group and Add a Bot

   In the Feishu group, select "Custom Bot":

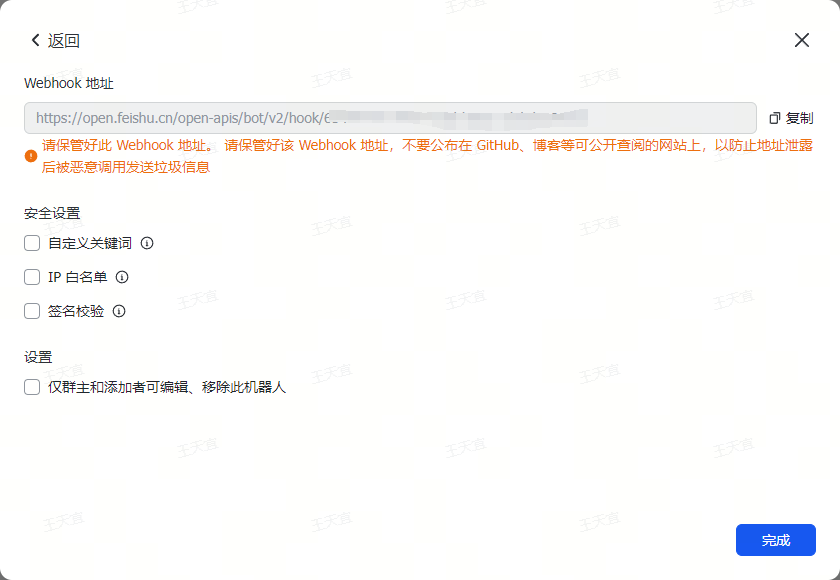

2. Copy Webhook Address

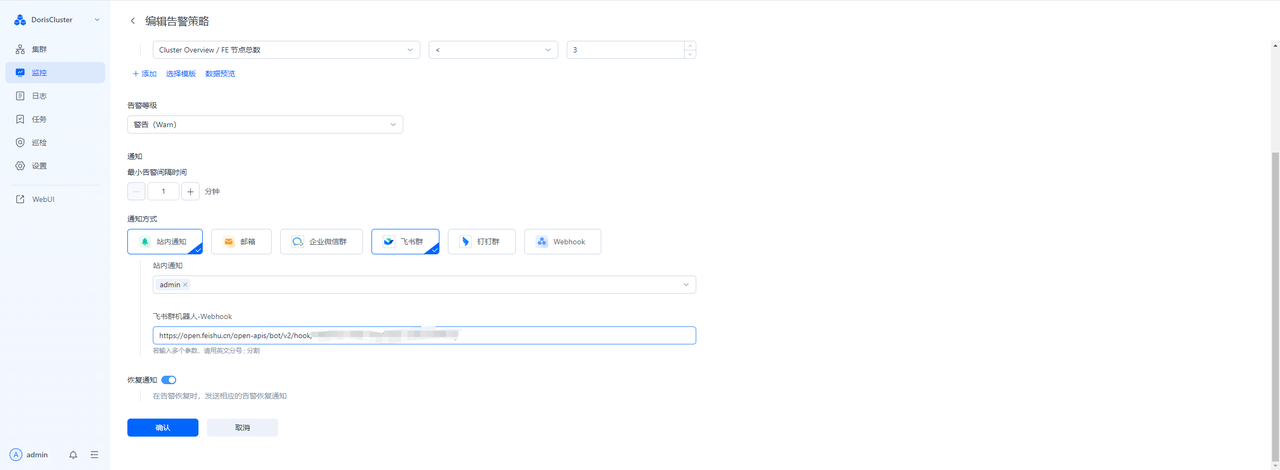

3. Configure Feishu Bot Webhook for Manager Alerts



Webhook

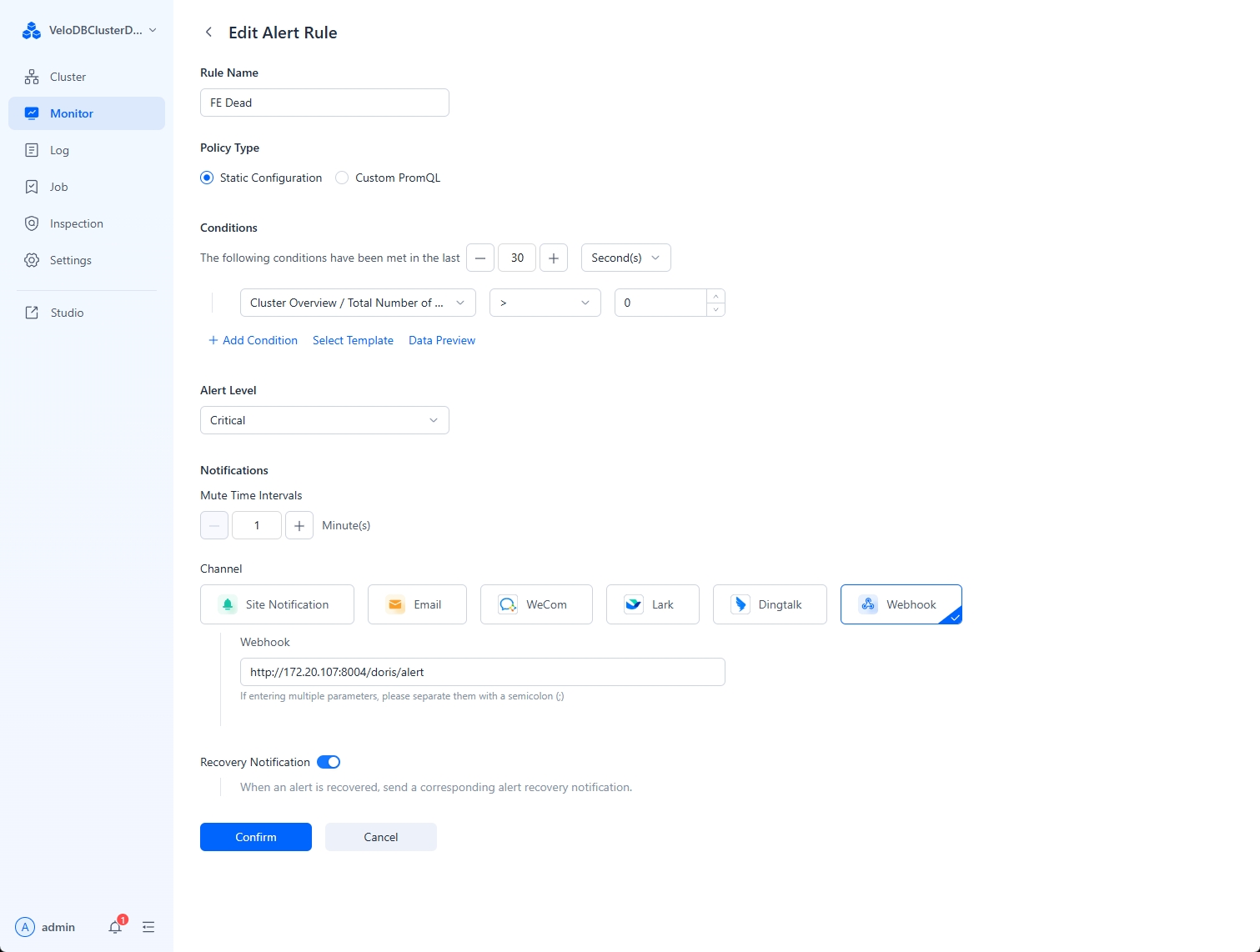

The Webhook method allows users to define a custom API and provide its full URL to Manager. Manager then sends alerts to this API, and the user's API can perform any other processing upon receiving the alert.

The body content sent by Manager to the user's API is as follows:

{
    "alertContent":"[cluster_guide]testrule1\nTime: 2023-12-15 17:32:56\nCluster: cluster_guide\nRule Name: testrule1\nAlert Content: FE Alive less than 50.0\n",
    "alertInfo":"FE Alive less than 50.0",
    "alertName":"testrule1",
    "cluster":"cluster_guide",
    "time":"2023-12-15 17:32:56"
}
