Deploying Doris Manager

Step 1: Download the Installation Package

Download (opens in a new tab) and extract the Doris Manager installation package.

The package directory structure is as follows:

├── agent        ## anget directory
│   ├── install.sh
│   ├── manager-agent-24.2.0-x64-bin.tar.gz
│   └── validation.sh
├── deps        ## Third-Party Dependency Directory
│   ├── alertmanager
│   ├── foundationdb-7.1.38.tar.gz
│   ├── grafana
│   ├── jdk
│   ├── jdk17
│   ├── prometheus
│   └── webui
├── LICENSE
└── webserver    ## WebServer directory
    ├── bin
    ├── conf
    ├── config-tool
    ├── inspection
    ├── lib
    └── static


Step 2: Start the WebServer Component

1. Modify the Installation Directory

   Choose an appropriate installation directory. In this example, the extracted package is moved to /opt/doris/manager:

   mv ./doris-manager-24.2.0-x64-bin /opt/doris/manager

2. Configure WebServer Service (Optional)

   Modify the webserver/conf/manager.conf file to configure the WebServer service. The configuration parameters are as follows:

   Parameter	Default	Description
   MANAGER_PORT	8004	Port for Doris Manager Web service component
   DB_TYPE	h2	Supported database types: mysql, h2 or postgresql
   DATA_PATH	../data	Manager metadata storage path (only effective when DB_TYPE is h2)
   DB_HOST	-	Database access address (only effective for mysql/postgresql)
   DB_PORT	-	Database access port (only effective for mysql/postgresql)
   DB_USER	-	Database access username (only effective for mysql/postgresql)
   DB_PASS	-	Database access password (only effective for mysql/postgresql)
   DB_DBNAME	-	Database name (only effective for mysql/postgresql)
   DB_URL_SUFFIX	-	MySQL database connection URL suffix
   HTTP_CONNECT_TIMEOUT	30	HTTP handshake timeout (in seconds)
   HTTP_SOCKET_TIMEOUT	60	HTTP response receive timeout (in seconds)
   LISTEN_PROTOCOL	ALL	IP protocol for service listening: ALL, IPV4 or IPV6 (ALL means both)
   FE_MIN_DISK_SPACE_FOR_UPGRADE	10	Minimum free disk space for FE module installation path during upgrade (GB)
   BE_MIN_DISK_SPACE_FOR_UPGRADE	10	Minimum free disk space for BE module installation path during upgrade (GB)

3. Start WebServer Service

   Start the WebServer service using the following command. After starting, check the MANAGER_PORT status (default is 8004):

   webserver/bin/start.sh

Step 3: Launch Manager via WebServer

Open http://{webserver-ip}:{manager-port} in your browser to access the WebServer service.

1. Initialize Doris Manager Administrator Account

   The first time you access the web service, you'll enter the user initialization page. Create the first Doris Manager administrator user here.

   The Doris Manager administrator account is independent of the cluster accounts and is used solely for Manager access control.

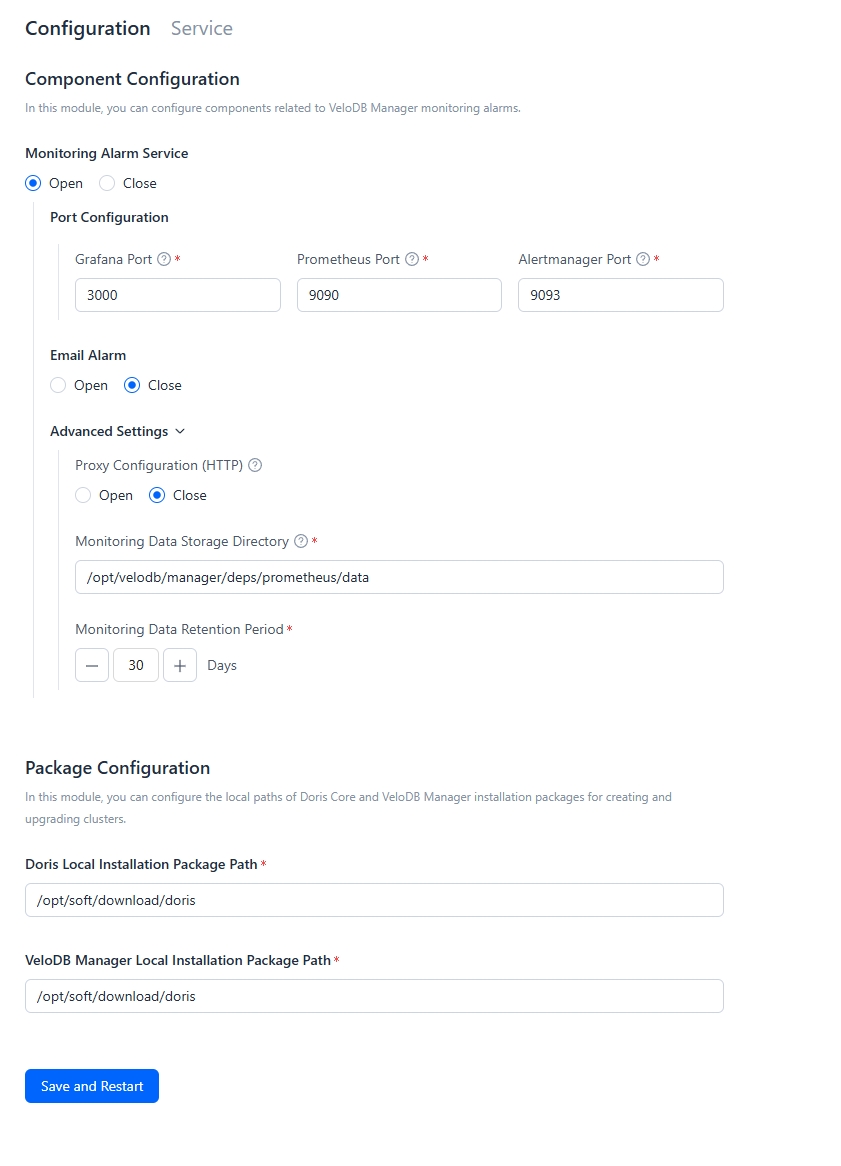

2. Configure Service Component Deployment Information

   You can configure service information on the following page:



   Configuration descriptions are as follows:

   Configuration	Description
   Monitoring and Alerting Service	Optional. Used to configure Doris Manager's monitoring and alerting modules. This will install Grafana, Prometheus, and Alertmanager. You'll need to select three available ports on the machine where Doris Manager is installed.
   Email Alerting	Configure the email server. Afterwards, you can use the "Email Alerting" channel for alerts.
   Proxy Configuration	If the production environment is isolated from the external network, you can set up a proxy to send notifications to public office communication software.
   Installation Package Configuration	Configure the local storage path for Doris Core and Doris Manager installation packages, used for creating new clusters and upgrading existing ones.
